Xinsu Global Electronic Co.,Limited, A Chinese battery charger, AC DC adapter factory with more than 10 years history. Product cover range from 3W to 220W with UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C
10 Years
| Ask Lasest Price | |
| Brand Name : | XINSUGLOBAL |
| Model Number : | XSG5883000 |
| Certification : | UL,CE,GS, SAA, RCM, C-tick, KC, PSE |
| Price : | 33USD/PC |
| Supply Ability : | 60000 PIECES/MONTH |
| Delivery Time : | 20DAYS |
| Model number | XSG5883000 | |
| AC input | Input Voltage range: | 90～264Vac |
| Reted input voltage: | 100～240Vac | |
| InputFrequency Range: | 47～62hz | |
| Input current max: | 3A | |
| Inrush current: | 50A Max/240V | |
| Efficiency: | 87% | |
| No load Input power | <0.5W | |
| Leakage current: | <0.25mA/240V | |
| DC output | Max charging voltage: | 54.6V |
| Output voltage tolerance: | 5% | |
| Max charging current: | 0～3A | |
| Ripple and noise: | 250mVp-p | |
| Charging mode: | 3- stage, CC,CV,trickle charging | |
| Cut off current when charged full | Optional | |
| LED indicator | Charging: Red, Charged full: Green | |
| Charging current when charged full | 0.1C | |
| Protection | Over current protection | PASS |
| Over voltage protection | ||
| Short circuit protection | ||
| Over Temp protection | ||
| Reverse protection | ||
| Anti-flow protection | ||
| Environment | Operating Temp: | 0℃～+45℃ |
| Storage Temp: | -30℃～+70℃ | |
| Relative Humidity: | 10%～90% | |
| Vibration and shock | Meet MIL-STD-810D | |
| Safety | Safety standard | IEC60950,IEC62368,UL, PSE,CE,GS,LVD, SAA,RCM,C-tick,CCC,KC |
| EMC/EMI | Meet FCC CLASS B,EN55022 CLASS B. | |
| EMS | EN61000－4－2 | |
| EN61000－4－3 | ||
| EN61000－4－4 | ||
| EN61000－4－5 | ||
| A Harmonic source | Pass | |
| HI-pot: Primary to Secondary | 3KVAC,5mA,60s | |
| Drop Test | As per UL regulation | |
| Burning test | 100%,4-5 hours | |
| Life | MTBF | 50000 hours |
| Warranty | 3 years | |

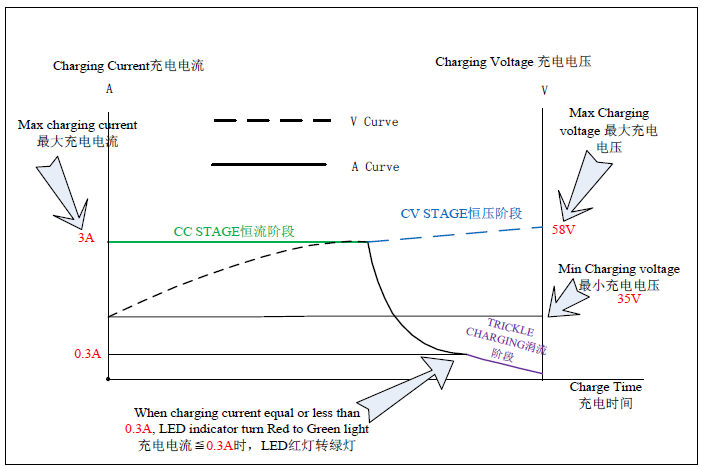

Output Curve:
